Cable Route Tracer

Interested in this product?

Multifunctional Portable Classic Underground Cable Fault Pipe Locator Cable

Category: Cable Route Tracer
Status: Available
ID: 11

Product Specification


Quiescent current	less than 10m A	Output power	100W
Packaging Details	Wooden case	Output signal	intermittent: 0～50Vpp
Output impedance	350Ω	Receiving frequency	audio frequency
Supply Ability	2000 units/month	Output frequency	15kHz intermittent
Payment Terms	T/T	Function	Cable route tracing & Cable fault pinpointing
Delivery Time	5-8 work days	Receiving mode	Magnetic sound synchronization
Magnification	50,0000 times	Output current	0～2A
Operating temperature	-10 ~ 55°C	Place of Origin	Xi'an, Shaanxi, China
Model Number	XHLJ504	Certification	CE
Brand Name	XZH TEST

XHLJ504

Cable Route tracer is specially-designed for detecting the underground cable layout position and underground depth in a certain range.

Cable route detector consists of signal transmitter and receiver (Cable fault pinpoint detector), both of which finish the detection. By united operation the Cable route detector could exactly pinpoint the cable route in the probable range of cable burial.

Main Technical Index Parameters.

a) big power output, anti-vibration, strong anti-interference ability, stable and reliable;

b) With reliable over current, open circuit and short circuit protection function;

c)Output Frequency: Audio Frequency.

d) Output signal:intermittent,0～50Vpp

e) Working power supply:220V(1±10%) 50Hz(1±5%)；

f) Output power:100W；

g) Output current:0～2A；

Multi-function

The cable path receiver is used in connection with probes and headphones, etc., and can be used as a cable fault pinpointer.

Main components

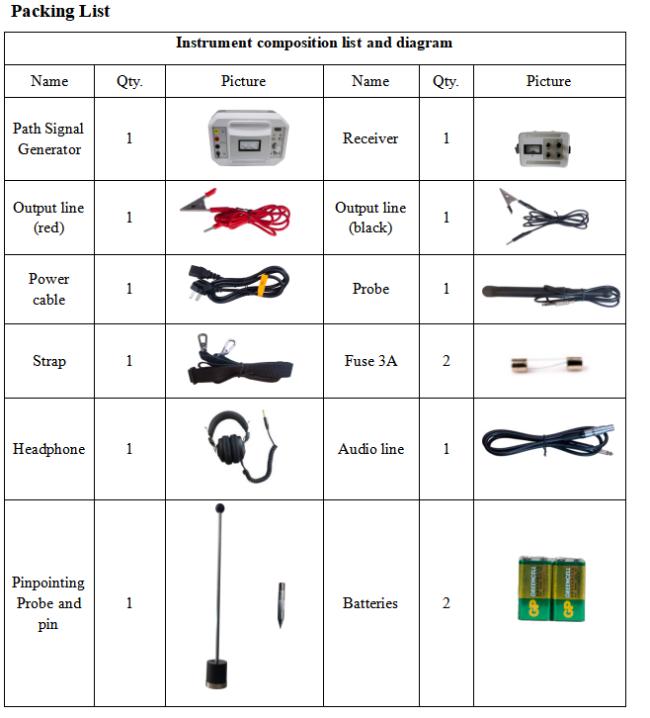

This cable pipe locator is mainly composed of transmitter and receiver, the two parts are shown as below.

Product Features

1. Using the traditional electromagnetic induction principle, strong anti-interference ability.

2. With over-current and short-circuit protection functions, it is safe and reliable.

3. High power output, not limited by cable length, open circuit can also find a path.

4. The output is steplessly adjustable, suitable for various test sites, with strong adaptability.

5. Super strong magnification, the detection depth is greater than 10 meters.

6. Ultra-low power consumption design, the quiescent current is less than 10mA.

7. The design of the analog meter, the signal strength and trend are clear at a glance.

8. The zero level can be adjusted arbitrarily, which is suitable for all kinds of strong and weak scenes.

View Complete Details

Chat online Now

Portable Xzh Digital Underground Metal Detector for Pipeline Tracer Cable Pipe

Interested in this product?

Get Best Quote

Portable Xzh Digital Underground Metal Detector for Pipeline Tracer Cable Pipe

Category: Cable Route Tracer
Status: Available
ID: 12

Product Specification


Origin	China Xi′an	Warranty	12 Months
Customization	Available	Packaging Details	wooden case
After-sales Service	Warranty Certificate	Trademark	XZH TEST
Supply Ability	100 Pieces /Year	Payment Terms	T/T
Portable	Portable	Model NO.	XHGX507X
Delivery Time	5-8 days	Customized	Customized
Transport Package	Wooden Case Filled with Foam	Application	industrial
Place of Origin	Xi'an, Shaanxi, China	Model Number	XHGX507X
Certification	CE, ISO	Brand Name	XZH TEST

Portable Xzh Digital Underground Metal Detector for Pipeline Tracer Cable Pipe Locator

Product Introduction
This cable pipe locator XHGX507X uses the electromagnetic field signal of the underground cable to locate the cable, and gives the depth and current readings, so as to realize the cable detection function.
The transmitter and receiver of this device comply with Part 15 of the U.S. FCC Rules, this equipment complies with the relevant provisions of European Directive 1999/5/EC.

Features:

This device can be used for cable path search, power unlive and live cable identification
Supports current direction and phase indication functions, and has a unique technology that can display the current direction and phase of the tracking signal, effectively improving the accuracy of the search path.
At the same time, it can also detect the buried depth of the cable.
Transmitter with multiple frequency options, 577HZ, 815HZ,8KHZ,33KHZ, 65KHZ,82KHZ,133KHZ,SS LOW, SS HIGH, Multi-frequency mode.
Function with ohmmeter to test current external continuous resistance value.
Digital display of signal strength
Gain
Left and right arrows indicate pipeline location
working frequency
Graphical display of signal strength
Operating mode
battery power
The compass indicates the direction of the pipeline
Real-time display of pipeline depth and current

Brief introduction to the transmitter

Xzh Test Digital Underground Metal Detector Pipeline Tracer Cable Pipe Locator

Transmitter instrument panel and function introduction
The transmitter is a signal source that can emit enough power, and is one of the cores of this set of instruments. It has complete functions, high intelligence and simple operation.

Panel Introduction
Note: see the picture above
1. Key 2. Output port 3. LCD display area 4. Frequency compound key 5. Power adjustment
compound key
6. Menu composite key 7. Charging port

Function introduction
1. Switch key: This switch is a self-locking switch; press it to turn on the power, the transmitter is in working state; pop up to disconnect the power supply, the transmitter is in a shutdown state.
2. Output port: This port is a multi-core dedicated aviation socket; it is used to change the output mode of the signal. Connecting the direct connection line is the direct connection mode; inserting the coupling clamp connection is the coupling mode; not connecting the line is the induction mode.
3. Liquid crystal display area: Display the required basic information.
4. Frequency key: This key is a jog soft switch; the frequency of the output signal can be changed every time it is pressed; the initial power-on is 577Hz. Initially 8KHz in sensing mode. In the frequency setting menu interface, press this key to select or cancel the frequency covered by the light bar; in the multi-frequency mode setting, press this key to choose to replace the output frequency channel.
5. Power key: This key is a jog soft switch; the output power can be changed once every time it is pressed, and it can be selected from low-grade, mid-grade, high-grade and full-grade. Flip through the frequency menu; in multi-frequency mode setting, press this key to select the output frequency.
6. Menu key: This key is a jog soft switch; press this key to cycle into the frequency setting menu, resistance measurement mode, and multi-frequency mode setting.
7. Charging port: This port is a Φ2.1 charging stand; it is used to connect a special charger to charge the battery.

Transmitter interface display content

Frequency	Display the current output frequency
Power	Display the current output power; it can display low-grade, mid-grade, high-grade and full-grade respectively
Mode	Displays the current working mode; direct connection, coupling, and induction can be displayed separately.
Current	Display the current loop current value; the effective display is 0-999 mA. Impedance: Display the current loop impedance value; the effective display is 00001-20000 ohms.
Power	Indicates the current battery power; it is represented by a battery symbol, all black is full power, and the left is the current power percentage display.
Matching tip	When the circle below the picture starts to roll, it means that the transmitter is working stably.
Frequency setting	577Hz, 815Hz, 8kHz, 33kHz, 65kHz, 82kHz, 133kHz, ss low, ss high, multi-frequency mode.

Signal output mode - transmitter working mode
The transmitter can output different AC signals, which can be applied to the target cable in three ways (direct connection, coupling, induction). To ensure reliable signal transmission on the target cable, there must be a reliable loop in the line. It can be an indirect loop composed of the ground, a capacitive loop composed of a distributed capacitance formed between a long enough cable and the ground, or a direct loop composed of short-circuit fault points between lines. Different circuits meet different tests.

Brief introduction to the receiver

Receiver panel and function introduction
A receiver is an integration of a system circuit capable of receiving a specific magnetic field and converting it into an electrical signal to display it and prompt the operator. It is the second core of this set of instruments. It is fully functional, highly intelligent, portable, lightweight, and easy to operate.

Interface display content function introduction
Receiver Broad Peak Arrow Mode Interface
Frequency: Display the current receiving frequency value; the initial value is 577Hz when power on.
Grating: The signal strength is indicated by the length of the grating; the grating moves from both sides to the middle, and the signal is too strong or out of range when the grating is full.
Three digits: the signal strength is indicated by the size of the number; the valid range is 00.0-99.9, when 99.9 is displayed, the signal is too strong or out of range.
Color compass: indicates the direction of the pipeline.
Depth & Current: Indicates the measured depth of the underground pipeline and the current on the pipeline.
Gain: Indicates the magnification of the signal currently processed by the receiver, with a dynamic range of 000-140db; it is automatically adjusted by default. The initial boot is 60db.
Mode: Indicates the way the receiver receives the signal, and displays narrow peak , wide peak , trough , broad peak arrow , peak + trough and external equipment ; the initial power-on is wide peak. External devices are automatically recognized.
Battery level: Indicates the current battery level; it is indicated by the battery symbol.
Volume: Indicates the current working status of the buzzer, represented by the horn symbol plus a line, one line is low loudness, two lines are medium loudness, three lines are high loudness, and a cross is to turn off the buzzer. The initial power-on is to turn off the buzzer.
Left and Right Arrows: Arrows automatically appear off the cable to indicate the cable location ; two arrows appear above the cable.
Current direction: When using the SS frequency, this function can display the direction of the signal current to assist the operator in path finding.
Phase Indication: When using the SS frequency, the receiver will display the phase of the signal. Long press the frequency key to clear the phase.

Receiver characteristics
1) Cable positioning: Select the wave crest method and use parallel antenna positioning to quickly track the target cable. When it is above the cable, the signal is the largest and the two sides are reduced. Choose the valley method and use the vertical antenna for positioning. When there are no adjacent cables and interference sources, the positioning is more accurate and reliable. When the receiver is above the cable, the signal is the smallest and the signal on both sides is large.
2) Depth measurement: In direct connection mode, the depth is measured directly. Place the receiver directly above the pipeline, and keep the instrument body still when the direction indicated by the compass points straight ahead, and the real-time sounding value is displayed in the upper left corner.
voice prompt
A great feature of this instrument is that it has a voice prompt, which can reduce the operator's eye fatigue when working for a long time, and make the detection work more simple and clear. The volume of the sound emitted by the receiver is proportional to the strength of the received signal. Under unity gain, when the sound from the receiver is loud and rapid, it means that the received signal is strong, and vice versa, it means that the received signal is weak. When the receiver is in the crest method, the sound is loudest and sharp right above the cable, and the sound is small and sparse on both sides. When the receiver is in the valley method, the sound is the smallest and most sparse right above the pipeline, and the sound is loud and tight on both sides.

Receiver working mode
working principle
When a signal is applied to the cable, there is a current on the cable, and the current generates a magnetic field that radiates around the cable. The frequency of the magnetic field is consistent with the frequency of the applied signal. The strength is the cable as the center of the circle and the radiation is decreased, and the direction is the tangent direction of a certain point on the radiation circle.
The receiver receives the magnetic field signal or the leaked electric field signal radiated by the cable through the internal antenna or external input device, and can be processed in two different working modes, and the signal strength change is prompted to the operator.
Signal reception mode - receiver working mode
Crest method (narrow peaks , broad peaks , broad arrows , peaks + valleys )
Trough method (trough )

View Complete Details

Chat online Now

Customization Underground Cable Pipe Locator for Route Tracing

Interested in this product?

Get Best Quote

Customization Underground Cable Pipe Locator for Route Tracing

Category: Cable Route Tracer
Status: Available
ID: 13

Product Specification


Origin	China Xi'an	Warranty	12 Months
Customization	Available	Packaging Details	wooden box
Color	Yellow	After-sales Service	Warranty Certificate
Trademark	XZH TEST	Supply Ability	2000 Pieces /Year
Payment Terms	T/T	Model NO.	XHGX507X
Delivery Time	5-7 days	Customized	Customized
Transport Package	Wooden Case Filled with Foam	Power	Electricity
Place of Origin	China	Model Number	XHGX507X
Certification	CE, ISO	Brand Name	XZH TEST

XHGX507X Customization Intelligent Yellow Underground Cable Pipe Locator for Route Tracing

Product Introduction
This cable pipe locator XHGX507X uses the electromagnetic field signal of the underground cable to locate the cable, and gives the depth and current readings, so as to realize the cable detection function.
The transmitter and receiver of this device comply with Part 15 of the U.S. FCC Rules, this equipment complies with the relevant provisions of European Directive 1999/5/EC.

Features:

This device can be used for cable path search, power unlive and live cable identification
Supports current direction and phase indication functions, and has a unique technology that can display the current direction and phase of the tracking signal, effectively improving the accuracy of the search path.
At the same time, it can also detect the buried depth of the cable.
Transmitter with multiple frequency options, 577HZ, 815HZ,8KHZ,33KHZ, 65KHZ,82KHZ,133KHZ,SS LOW, SS HIGH, Multi-frequency mode.
Function with ohmmeter to test current external continuous resistance value.
Digital display of signal strength
gain
Left and right arrows indicate pipeline location
working frequency
Graphical display of signal strength
Operating mode
battery power
The compass indicates the direction of the pipeline
Real-time display of pipeline depth and current

Brief introduction to the transmitter

Xzh Test Intelligent Yellow Underground Cable Pipe Locator Route Tracer Digital Metal Pipe Detector

Transmitter instrument panel and function introduction
The transmitter is a signal source that can emit enough power, and is one of the cores of this set of instruments. It has complete functions, high intelligence and simple operation.

Panel Introduction
Note: see the picture above
1. Key 2. Output port 3. LCD display area 4. Frequency compound key 5. Power adjustment
compound key
6. Menu composite key 7. Charging port

Function introduction
1. Switch key: This switch is a self-locking switch; press it to turn on the power, the transmitter is in working state; pop up to disconnect the power supply, the transmitter is in a shutdown state.
2. Output port: This port is a multi-core dedicated aviation socket; it is used to change the output mode of the signal. Connecting the direct connection line is the direct connection mode; inserting the coupling clamp connection is the coupling mode; not connecting the line is the induction mode.
3. Liquid crystal display area: Display the required basic information.
4. Frequency key: This key is a jog soft switch; the frequency of the output signal can be changed every time it is pressed; the initial power-on is 577Hz. Initially 8KHz in sensing mode. In the frequency setting menu interface, press this key to select or cancel the frequency covered by the light bar; in the multi-frequency mode setting, press this key to choose to replace the output frequency channel.
5. Power key: This key is a jog soft switch; the output power can be changed once every time it is pressed, and it can be selected from low-grade, mid-grade, high-grade and full-grade. Flip through the frequency menu; in multi-frequency mode setting, press this key to select the output frequency.
6. Menu key: This key is a jog soft switch; press this key to cycle into the frequency setting menu, resistance measurement mode, and multi-frequency mode setting.
7. Charging port: This port is a Φ2.1 charging stand; it is used to connect a special charger to charge the battery.

Transmitter interface display content

Frequency	Display the current output frequency
Power	Display the current output power; it can display low-grade, mid-grade, high-grade and full-grade respectively
Mode	Displays the current working mode; direct connection, coupling, and induction can be displayed separately.
Current	Display the current loop current value; the effective display is 0-999 mA. Impedance: Display the current loop impedance value; the effective display is 00001-20000 ohms.
Power	Indicates the current battery power; it is represented by a battery symbol, all black is full power, and the left is the current power percentage display.
Matching tip	When the circle below the picture starts to roll, it means that the transmitter is working stably.
Frequency setting	577Hz, 815Hz, 8kHz, 33kHz, 65kHz, 82kHz, 133kHz, ss low, ss high, multi-frequency mode.

Signal output mode - transmitter working mode
The transmitter can output different AC signals, which can be applied to the target cable in three ways (direct connection, coupling, induction). To ensure reliable signal transmission on the target cable, there must be a reliable loop in the line. It can be an indirect loop composed of the ground, a capacitive loop composed of a distributed capacitance formed between a long enough cable and the ground, or a direct loop composed of short-circuit fault points between lines. Different circuits meet different tests.

Brief introduction to the receiver

Receiver panel and function introduction
A receiver is an integration of a system circuit capable of receiving a specific magnetic field and converting it into an electrical signal to display it and prompt the operator. It is the second core of this set of instruments. It is fully functional, highly intelligent, portable, lightweight, and easy to operate.

Interface display content function introduction
Receiver Broad Peak Arrow Mode Interface
Frequency: Display the current receiving frequency value; the initial value is 577Hz when power on.
Grating: The signal strength is indicated by the length of the grating; the grating moves from both sides to the middle, and the signal is too strong or out of range when the grating is full.
Three digits: the signal strength is indicated by the size of the number; the valid range is 00.0-99.9, when 99.9 is displayed, the signal is too strong or out of range.
Color compass: indicates the direction of the pipeline.
Depth & Current: Indicates the measured depth of the underground pipeline and the current on the pipeline.
Gain: Indicates the magnification of the signal currently processed by the receiver, with a dynamic range of 000-140db; it is automatically adjusted by default. The initial boot is 60db.
Mode: Indicates the way the receiver receives the signal, and displays narrow peak , wide peak , trough , broad peak arrow , peak + trough and external equipment ; the initial power-on is wide peak. External devices are automatically recognized.
Battery level: Indicates the current battery level; it is indicated by the battery symbol.
Volume: Indicates the current working status of the buzzer, represented by the horn symbol plus a line, one line is low loudness, two lines are medium loudness, three lines are high loudness, and a cross is to turn off the buzzer. The initial power-on is to turn off the buzzer.
Left and Right Arrows: Arrows automatically appear off the cable to indicate the cable location ; two arrows appear above the cable.
Current direction: When using the SS frequency, this function can display the direction of the signal current to assist the operator in path finding.
Phase Indication: When using the SS frequency, the receiver will display the phase of the signal. Long press the frequency key to clear the phase.Receiver characteristics
1) Cable positioning: Select the wave crest method and use parallel antenna positioning to quickly track the target cable. When it is above the cable, the signal is the largest and the two sides are reduced. Choose the valley method and use the vertical antenna for positioning. When there are no adjacent cables and interference sources, the positioning is more accurate and reliable. When the receiver is above the cable, the signal is the smallest and the signal on both sides is large.
2) Depth measurement: In direct connection mode, the depth is measured directly. Place the receiver directly above the pipeline, and keep the instrument body still when the direction indicated by the compass points straight ahead, and the real-time sounding value is displayed in the upper left corner.
voice prompt
A great feature of this instrument is that it has a voice prompt, which can reduce the operator's eye fatigue when working for a long time, and make the detection work more simple and clear. The volume of the sound emitted by the receiver is proportional to the strength of the received signal. Under unity gain, when the sound from the receiver is loud and rapid, it means that the received signal is strong, and vice versa, it means that the
received signal is weak. When the receiver is in the crest method, the sound is loudest and sharp right above the cable, and the sound is small and sparse on both sides. When the receiver is in the valley method, the sound is the smallest and most sparse right above the pipeline, and the sound is loud and tight on both sides.

Receiver working mode
working principle
When a signal is applied to the cable, there is a current on the cable, and the current generates a magnetic field that radiates around the cable. The frequency of the magnetic field is consistent with the frequency of the applied signal. The strength is the cable as the center of the circle and the radiation is decreased, and the direction is the tangent direction of a certain point on the radiation circle.
The receiver receives the magnetic field signal or the leaked electric field signal radiated by the cable through the internal antenna or external input device, and can be processed in two different working modes, and the signal strength change is prompted to the operator.
Signal reception mode - receiver working mode
Crest method (narrow peaks , broad peaks , broad arrows , peaks + valleys )
Trough method (trough )

View Complete Details

Chat online Now

Electric Cable Fault Locator Underground Cable Locator Tester Utility Metal

Interested in this product?

Get Best Quote

Electric Cable Fault Locator Underground Cable Locator Tester Utility Metal

Category: Cable Route Tracer
Status: Available
ID: 14

Product Specification


Origin	China Xi′an	Warranty	12 Months
Customization	Available	Packaging Details	wooden case
After-sales Service	Warranty Certificate	Trademark	XZH TEST
Supply Ability	1000 Pieces /Year	Payment Terms	T/T
Portable	Portable	Model NO.	XHGX507X
Delivery Time	5-8 days	Customized	Customized
Transport Package	Wooden Case Filled with Foam	Application	industrial
Place of Origin	Xi'an, Shaanxi, China	Model Number	XHGX507X
Certification	CE, ISO	Brand Name	XZH TEST

Electric Cable Fault Locator Underground Cable Pipe Locator Tester Utility Metal Detector

Product Introduction
This cable pipe locator XHGX507X uses the electromagnetic field signal of the underground cable to locate the cable, and gives the depth and current readings, so as to realize the cable detection function.
The transmitter and receiver of this device comply with Part 15 of the U.S. FCC Rules, this equipment complies with the relevant provisions of European Directive 1999/5/EC.

Features:

This device can be used for cable path search, power unlive and live cable identification
Supports current direction and phase indication functions, and has a unique technology that can display the current direction and phase of the tracking signal, effectively improving the accuracy of the search path.
At the same time, it can also detect the buried depth of the cable.
Transmitter with multiple frequency options, 577HZ, 815HZ,8KHZ,33KHZ, 65KHZ,82KHZ,133KHZ,SS LOW, SS HIGH, Multi-frequency mode.
Function with ohmmeter to test current external continuous resistance value.
Digital display of signal strength
Gain
Left and right arrows indicate pipeline location
Working frequency
Graphical display of signal strength
Operating mode
battery power
The compass indicates the direction of the pipeline
Real-time display of pipeline depth and current

Brief introduction to the transmitter

Underground Cable Pipe Locator Tester Electric Cable Fault Locator Utility Metal Detector

Transmitter instrument panel and function introduction
The transmitter is a signal source that can emit enough power, and is one of the cores of this set of instruments. It has complete functions, high intelligence and simple operation.
Panel Introduction
Note: see the picture above
1. Key 2. Output port 3. LCD display area 4. Frequency compound key 5. Power adjustment
compound key
6. Menu composite key 7. Charging port
Function introduction
1. Switch key: This switch is a self-locking switch; press it to turn on the power, the transmitter is in working state; pop up to disconnect the power supply, the transmitter is in a shutdown state.
2. Output port: This port is a multi-core dedicated aviation socket; it is used to change the output mode of the signal. Connecting the direct connection line is the direct connection mode; inserting the coupling clamp connection is the coupling mode; not connecting the line is the induction mode.
3. Liquid crystal display area: Display the required basic information.
4. Frequency key: This key is a jog soft switch; the frequency of the output signal can be changed every time it is pressed; the initial power-on is 577Hz. Initially 8KHz in sensing mode. In the frequency setting menu interface, press this key to select or cancel the frequency covered by the light bar; in the multi-frequency mode setting, press this key to choose to replace the output frequency channel.
5. Power key: This key is a jog soft switch; the output power can be changed once every time it is pressed, and it can be selected from low-grade, mid-grade, high-grade and full-grade. Flip through the frequency menu; in multi-frequency mode setting, press this key to select the output frequency.
6. Menu key: This key is a jog soft switch; press this key to cycle into the frequency setting menu, resistance measurement mode, and multi-frequency mode setting.
7. Charging port: This port is a Φ2.1 charging stand; it is used to connect a special charger to charge the battery.
Transmitter interface display content

Frequency	Display the current output frequency
Power	Display the current output power; it can display low-grade, mid-grade, high-grade and full-grade respectively
Mode	Displays the current working mode; direct connection, coupling, and induction can be displayed separately.
Current	Display the current loop current value; the effective display is 0-999 mA. Impedance: Display the current loop impedance value; the effective display is 00001-20000 ohms.
Power	Indicates the current battery power; it is represented by a battery symbol, all black is full power, and the left is the current power percentage display.
Matching tip	When the circle below the picture starts to roll, it means that the transmitter is working stably.
Frequency setting	577Hz, 815Hz, 8kHz, 33kHz, 65kHz, 82kHz, 133kHz, ss low, ss high, multi-frequency mode.

Signal output mode - transmitter working mode
The transmitter can output different AC signals, which can be applied to the target cable in three ways (direct connection, coupling, induction). To ensure reliable signal transmission on the target cable, there must be a reliable loop in the line. It can be an indirect loop composed of the ground, a capacitive loop composed of a distributed capacitance formed between a long enough cable and the ground, or a direct loop composed of short-circuit fault points between lines. Different circuits meet different tests.
Brief introduction to the receiver

Receiver panel and function introduction
A receiver is an integration of a system circuit capable of receiving a specific magnetic field and converting it into an electrical signal to display it and prompt the operator. It is the second core of this set of instruments. It is fully functional, highly intelligent, portable, lightweight, and easy to operate.

Interface display content function introduction

Receiver Broad Peak Arrow Mode Interface
Frequency: Display the current receiving frequency value; the initial value is 577Hz when power on.
Grating: The signal strength is indicated by the length of the grating; the grating moves from both sides to the middle, and the signal is too strong or out of range when the grating is full.
Three digits: the signal strength is indicated by the size of the number; the valid range is 00.0-99.9, when 99.9 is displayed, the signal is too strong or out of range.
Color compass: indicates the direction of the pipeline.
Depth & Current: Indicates the measured depth of the underground pipeline and the current on the pipeline.
Gain: Indicates the magnification of the signal currently processed by the receiver, with a dynamic range of 000-140db; it is automatically adjusted by default. The initial boot is 60db.
Mode: Indicates the way the receiver receives the signal, and displays narrow peak , wide peak , trough , broad peak arrow , peak + trough and external equipment ; the initial power-on is wide peak. External devices are automatically recognized.
Battery level: Indicates the current battery level; it is indicated by the battery symbol.
Volume: Indicates the current working status of the buzzer, represented by the horn symbol plus a line, one line is low loudness, two lines are medium loudness, three lines are high loudness, and a cross is to turn off the buzzer. The initial power-on is to turn off the buzzer.
Left and Right Arrows: Arrows automatically appear off the cable to indicate the cable location ; two arrows appear above the cable.
Current direction: When using the SS frequency, this function can display the direction of the signal current to assist the operator in path finding.
Phase Indication: When using the SS frequency, the receiver will display the phase of the signal. Long press the frequency key to clear the phase.

Receiver characteristics
1) Cable positioning: Select the wave crest method and use parallel antenna positioning to quickly track the target cable. When it is above the cable, the signal is the largest and the two sides are reduced. Choose the valley method and use the vertical antenna for positioning. When there are no adjacent cables and interference sources, the positioning is more accurate and reliable. When the receiver is above the cable, the signal is the smallest and the signal on both sides is large.
2) Depth measurement: In direct connection mode, the depth is measured directly. Place the receiver directly above the pipeline, and keep the instrument body still when the direction indicated by the compass points straight ahead, and the real-time sounding value is displayed in the upper left corner.
voice prompt
A great feature of this instrument is that it has a voice prompt, which can reduce the operator's eye fatigue when working for a long time, and make the detection work more simple and clear. The volume of the sound emitted by the receiver is proportional to the strength of the received signal. Under unity gain, when the sound from the receiver is loud and rapid, it means that the received signal is strong, and vice versa, it means that the
received signal is weak. When the receiver is in the crest method, the sound is loudest and sharp right above the cable, and the sound is small and sparse on both sides. When the receiver is in the valley method, the sound is the smallest and most sparse right above the pipeline, and the sound is loud and tight on both sides.
Receiver working mode
working principle
When a signal is applied to the cable, there is a current on the cable, and the current generates a magnetic field that radiates around the cable. The frequency of the magnetic field is consistent with the frequency of the applied signal. The strength is the cable as the center of the circle and the radiation is decreased, and the direction is the tangent direction of a certain point on the radiation circle.
The receiver receives the magnetic field signal or the leaked electric field signal radiated by the cable through the internal antenna or external input device, and can be processed in two different working modes, and the signal strength change is prompted to the operator.
Signal reception mode - receiver working mode
Crest method (narrow peaks , broad peaks , broad arrows , peaks + valleys )
Trough method (trough )
Packing list

View Complete Details

Chat online Now

Portable Electric Cable and Metal Pipeline Locator Tester

Interested in this product?

Get Best Quote

Portable Electric Cable and Metal Pipeline Locator Tester

Category: Cable Route Tracer
Status: Available
ID: 15

Product Specification


Warranty	12 Months	Transmitter working mode	direct connection, coupling, inductive
Packaging Details	Wooden case	Supply Ability	2000unit/year
Receiver frequency	50Hz, 60Hz, LF, SSLOW, SSHIGH, 577Hz, 8KHz, 33KHz, 82KHz, 133KHz, initially 577Hz.	Payment Terms	T/T
Delivery Time	5-8 work days	Customized	OEM service
Transport Package	Wooden Case Filled with Foam	Transmitter output frequency	577Hz,815Hz,8kHz, 33kHz, 65kHz,82kHz, 133kHz, SS Low, SS High,multi-frequency mode.
Application	Underground cable and pipe location	Display	Digital
Place of Origin	Xi'an, Shaanxi, China	Model Number	XHGX507C
Certification	CE, ISO	Brand Name	XZH TEST

XHGX507C

This cable pipe locator XHGX507X uses the electromagnetic field signal of the underground cable to locate the cable, and gives the depth and current readings, so as to realize the cable detection function.
The transmitter and receiver of this device comply with Part 15 of the U.S. FCC Rules, this equipment complies with the relevant provisions of European Directive 1999/5/EC.
Features:

This device can be used for cable path search, power unlive and live cable identification

Supports current direction and phase indication functions, and has a unique technology that can display the current direction and phase of the tracking signal, effectively improving the accuracy of the search path.

At the same time, it can also detect the buried depth of the cable.

Transmitter with multiple frequency options, 577HZ, 815HZ,8KHZ,33KHZ, 65KHZ,82KHZ,133KHZ,SS LOW, SS HIGH, Multi-frequency mode.

Function with ohmmeter to test current external continuous resistance value.

Digital display of signal strength

Left and right arrows indicate pipeline location

Working frequency

Graphical display of signal strength

Operating mode

Battery power

The compass indicates the direction of the pipeline

Real-time display of pipeline depth and curren

Transmitter instrument panel and function introduction
The transmitter is a signal source that can emit enough power, and is one of the cores of this set of instruments. It has complete functions, high intelligence and simple operation.
Panel Introduction
Note: see the picture above
1. Key 2. Output port 3. LCD display area 4. Frequency compound key 5. Power adjustment
compound key
6. Menu composite key 7. Charging port
Function introduction
1. Switch key: This switch is a self-locking switch; press it to turn on the power, the transmitter is in working state; pop up to disconnect the power supply, the transmitter is in a shutdown state.
2. Output port: This port is a multi-core dedicated aviation socket; it is used to change the output mode of the signal. Connecting the direct connection line is the direct connection mode; inserting the coupling clamp connection is the coupling mode; not connecting the line is the induction mode.
3. Liquid crystal display area: Display the required basic information.
4. Frequency key: This key is a jog soft switch; the frequency of the output signal can be changed every time it is pressed; the initial power-on is 577Hz. Initially 8KHz in sensing mode. In the frequency setting menu interface, press this key to select or cancel the frequency covered by the light bar; in the multi-frequency mode setting, press this key to choose to replace the output frequency channel.
5. Power key: This key is a jog soft switch; the output power can be changed once every time it is pressed, and it can be selected from low-grade, mid-grade, high-grade and full-grade. Flip through the frequency menu; in multi-frequency mode setting, press this key to select the output frequency.
6. Menu key: This key is a jog soft switch; press this key to cycle into the frequency setting menu, resistance measurement mode, and multi-frequency mode setting.
7. Charging port: This port is a Φ2.1 charging stand; it is used to connect a special charger to charge the battery.
Transmitter interface display content

Frequency	Display the current output frequency
Power	Display the current output power; it can display low-grade, mid-grade, high-grade and full-grade respectively
Mode	Displays the current working mode; direct connection, coupling, and induction can be displayed separately.
Current	Display the current loop current value; the effective display is 0-999 mA. Impedance: Display the current loop impedance value; the effective display is 00001-20000 ohms.
Power	Indicates the current battery power; it is represented by a battery symbol, all black is full power, and the left is the current power percentage display.
Matching tip	When the circle below the picture starts to roll, it means that the transmitter is working stably.
Frequency setting	577Hz, 815Hz, 8kHz, 33kHz, 65kHz, 82kHz, 133kHz, ss low, ss high, multi-frequency mode.

Signal output mode - transmitter working mode
The transmitter can output different AC signals, which can be applied to the target cable in three ways (direct connection, coupling, induction). To ensure reliable signal transmission on the target cable, there must be a reliable loop in the line. It can be an indirect loop composed of the ground, a capacitive loop composed of a distributed capacitance formed between a long enough cable and the ground, or a direct loop composed of short-circuit fault points between lines. Different circuits meet different tests.
Brief introduction to the receiver

Portable Underground Cable Fault Locator Tester Electric Cable Metal Pipeline Locator

Receiver panel and function introduction
A receiver is an integration of a system circuit capable of receiving a specific magnetic field and converting it into an electrical signal to display it and prompt the operator. It is the second core of this set of instruments. It is fully functional, highly intelligent, portable, lightweight, and easy to operate.

Interface display content function introduction
Receiver Broad Peak Arrow Mode Interface
Frequency: Display the current receiving frequency value; the initial value is 577Hz when power on.
Grating: The signal strength is indicated by the length of the grating; the grating moves from both sides to the middle, and the signal is too strong or out of range when the grating is full.
Three digits: the signal strength is indicated by the size of the number; the valid range is 00.0-99.9, when 99.9 is displayed, the signal is too strong or out of range.
Color compass: indicates the direction of the pipeline.
Depth & Current: Indicates the measured depth of the underground pipeline and the current on the pipeline.
Gain: Indicates the magnification of the signal currently processed by the receiver, with a dynamic range of 000-140db; it is automatically adjusted by default. The initial boot is 60db.
Mode: Indicates the way the receiver receives the signal, and displays narrow peak , wide peak , trough , broad peak arrow , peak + trough and external equipment ; the initial power-on is wide peak. External devices are automatically recognized.
Battery level: Indicates the current battery level; it is indicated by the battery symbol.
Volume: Indicates the current working status of the buzzer, represented by the horn symbol plus a line, one line is low loudness, two lines are medium loudness, three lines are high loudness, and a cross is to turn off the buzzer. The initial power-on is to turn off the buzzer.
Left and Right Arrows: Arrows automatically appear off the cable to indicate the cable location ; two arrows appear above the cable.
Current direction: When using the SS frequency, this function can display the direction of the signal current to assist the operator in path finding.
Phase Indication: When using the SS frequency, the receiver will display the phase of the signal. Long press the frequency key to clear the phase.

Receiver characteristics
1) Cable positioning: Select the wave crest method and use parallel antenna positioning to quickly track the target cable. When it is above the cable, the signal is the largest and the two sides are reduced. Choose the valley method and use the vertical antenna for positioning. When there are no adjacent cables and interference sources, the positioning is more accurate and reliable. When the receiver is above the cable, the signal is the smallest and the signal on both sides is large.
2) Depth measurement: In direct connection mode, the depth is measured directly. Place the receiver directly above the pipeline, and keep the instrument body still when the direction indicated by the compass points straight ahead, and the real-time sounding value is displayed in the upper left corner.
voice prompt
A great feature of this instrument is that it has a voice prompt, which can reduce the operator's eye fatigue when working for a long time, and make the detection work more simple and clear. The volume of the sound emitted by the receiver is proportional to the strength of the received signal. Under unity gain, when the sound from the receiver is loud and rapid, it means that the received signal is strong, and vice versa, it means that the
received signal is weak. When the receiver is in the crest method, the sound is loudest and sharp right above the cable, and the sound is small and sparse on both sides. When the receiver is in the valley method, the sound is the smallest and most sparse right above the pipeline, and the sound is loud and tight on both sides.
Receiver working mode
working principle
When a signal is applied to the cable, there is a current on the cable, and the current generates a magnetic field that radiates around the cable. The frequency of the magnetic field is consistent with the frequency of the applied signal. The strength is the cable as the center of the circle and the radiation is decreased, and the direction is the tangent direction of a certain point on the radiation circle.
The receiver receives the magnetic field signal or the leaked electric field signal radiated by the cable through the internal antenna or external input device, and can be processed in two different working modes, and the signal strength change is prompted to the operator.
Signal reception mode - receiver working mode
Crest method (narrow peaks , broad peaks , broad arrows , peaks + valleys )
Trough method (trough )
Packing list

View Complete Details

Chat online Now
